Analog Interface with SyncBus & McBSP

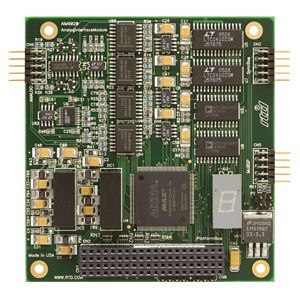

AIM6020HR
Industrial Analog Interface Module with DSP PlatformBus

Operating Temperature -40° to +85°C

Key Features

• PC/104 compliant size
• Two Independent 1.25 MHz 12 bit A/D converters
• Two Independent 200 kHz 12 bit D/A converters
• Non-volatile digital pot-controlled Amplifier
• Programmable Switched Capacitor  anti-aliasing Filter
• Non-volatile digitally controlled offset
• Up to four devices on PlatformBus
• 5 Vdc Supplied through the PlatformBus
• Stackable 80-pin PlatformBus (Buffered Asynchronous Memory Interface of the DSP)
• Multi-channel Buffered Serial Port (McBSP) (max. 100Mbit/s )
• SyncBus - Synchronous sampling or triggering with the dspModule™
• Gain Settings by Non-volatile dig pot from -6 dB to +6 dB
• Offsets by dig pot
• Mating Connectors
  • Standard 16-pin 0.1" DIL header (Analog)
  • Standard 10-pin 0.1" DIL header (SyncBus)
  • Standard 10-pin 0.1" DIL header (McBSP)

I/O

• Two Independent 1.25 MHz 12 bit A/D converters
• Full scale input range = +/- 2.5 V
• Two Independent 200 kHz 12 bit D/A converters
  • Buffered outputs: +/- 5V full scale range
  • Filtered outputs: +/- 2.5V full scale range
• PlatformBus (3.3V)
  • 32-bit data
  • 16-bit address
  • Buffered Asynchronous Memory Interface of the DSP
  • High speed data transfer device between the DSP and the analog interface
• Multi-channel Buffered Serial Port (McBSP):
  • Buffered Asynchronous Memory Interface of the DSP
  • High speed data transfer device between the DSP and the analog interface
  • TI/EI, MVIP, SCSA, ST bus, AC97 SPI Compatible
• SyncBus for Synchronous operation with DSP

Physical Attributes

• Dimensions
  • Length (L): 3.775 inches (95.89 mm)
  • Width (W): 3.550 inches (90.17 mm)
  • Stand-off Height: 0.600 inches (15.24 mm)
• Weight: Approximately 0.22 lbs. (0.10 Kg)
• Standard Operating Temperature, 90% humidity non-condensing: -40 to +85°C
• Storage Temperature: -55 to +125°C
• Power Consumption 2.8 W @ 5 VDC typical
