1.4 GHz PC/104-Plus cpuModule with 256MB DDR SDRAM & 4GB Flash Drive

PC/104-Plus Single Board Computer & Controller 1.40 GHz Intel® Pentium® M

Key Features

• PC/104 Form Factor
• PCI-104 Stackable Bus Structure
• Complete PC-compatible Single Board Computer (SBC)
• Available in stackable, rugged enclosures
• Intel Pentium M 1.40 GHz Processor on 90nm
• Thermal throttling
• Nonvolatile storage of CMOS settings without battery
• Stackable 120-pin PCI bus
  • 4 Bus master add-on cards capable
• 256 Mbytes BGA DDR SDRAM (Surface-Mounted)
  • Up to 333 MHz Data Rate
• 32-pin SSD socket:
  • Removable Onboard Miniature Industrial ATA/IDE Flash Drive up to 8GB (4GB Standard)
  • Flash Drive PIO Mode with BIOS-configured write protect function (available upon request)
  • Natively supported by all major operating systems
• BIOS Selectable 14-bit Digital I/O with Advanced Digital Interrupt Modes with Ground and +5 VDC
• 10/100 Ethernet with PXE Network Boot
• Four RS-232/422/485 Ports
• Four USB 2.0 (Universal Serial Bus) Ports
• EIDE Controller with UltraDMA 100
• 855GME SVGA controller Onboard with 3D Acceleration
• DirectX & OpenGL 3D Accelerator
• Advanced power management features including Enhanced Intel SpeedStep Technology
• Advanced Thermal Management
  • Thermal Throttling reduces clock speed to prevent thermal runaway
  • Auto Fan Control only runs fan when needed
  • Hardware monitor for CPU temperature, board temperature, and power supply voltages

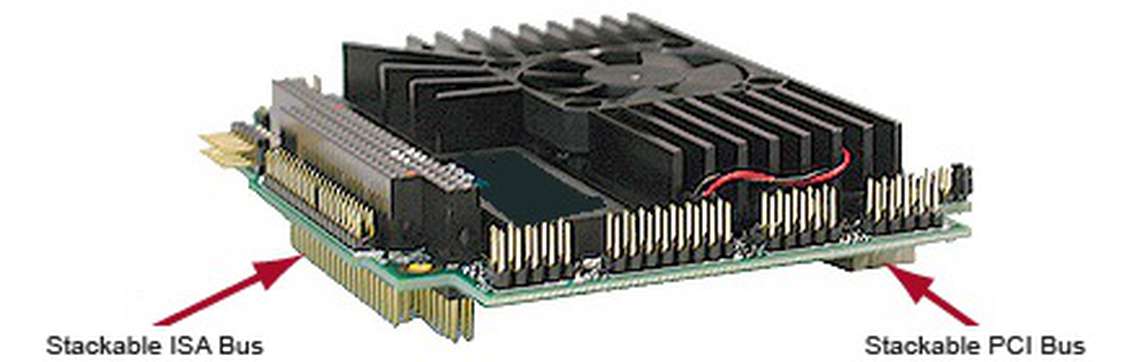

  • Mini Fan Heatsink with Auto Fan control

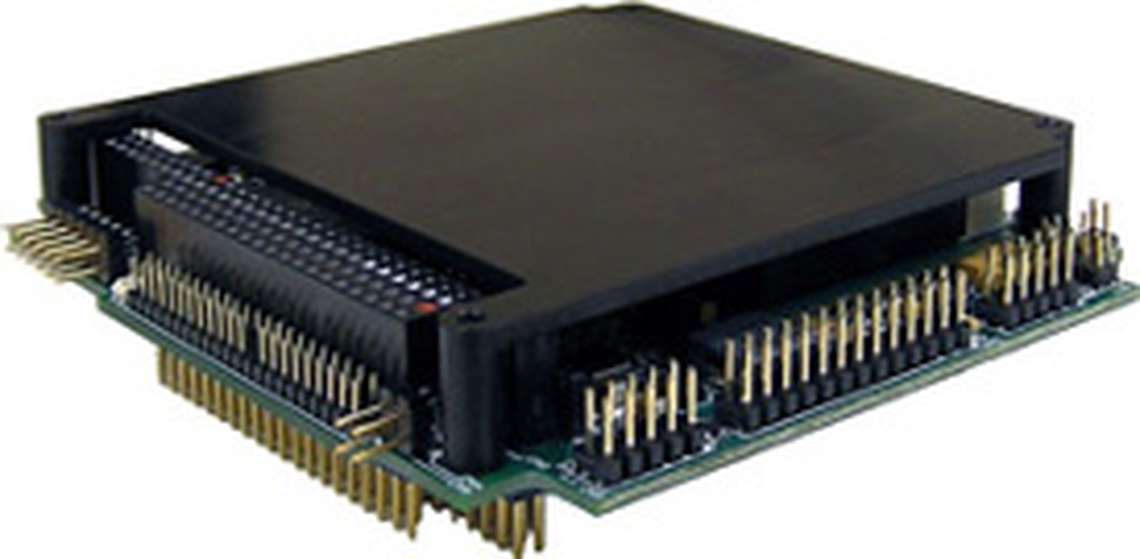

  • Passive Structural Heatsink & Heatpipes in IDAN and HiDAN System Configurations
• Advanced Programmable Interrupt Controller (APIC)
• 24 interrupt channels with APIC enabled (15 in legacy PIC mode)
• 3 timer/counter channels
• High resolution 100 MHz APIC timer
• RTD Enhanced BIOS with ACPI, USB Boot and Quick Boot modes
• Advanced Configuration and Power Interface (ACPI)
  • ACPI 1.0 Compliant
  • Supported power down modes: S1 (Power On Suspend), S3 (Suspend to RAM), S4 (Hibernate), and S5 (Soft-Off)
  • CPU Clock Throttling and Clock Stop for C0 to C3 Support
  • Also supports APM 1.2 for legacy power management
• 3.3V or 5V PCI bus signaling
• 400 MHz, source-Synchronous Front Side Bus
• Supports MMX and SSE2 instructions
• Math coprocessor
• Internal Cache
  • L1 - 32KB of instruction and 32KB data; L2 - 2MB
• Y2K compliant real time clock (external battery required)
• Watchdog timer
• PS/2 Mouse Port
• Keyboard Port
• Speaker Port


Technical Details

• Fast Ethernet
  • Ethernet Controller
    • Intel 82562 Fast Ethernet PCI Controller
    • Integrated 3KByte Transmit and 3Kbyte Receive FIFOs
  • Physical Layer
    • 100Base-Tx and 10Base-T
    • Full Duplex support
  • Easy to Use
    • Low Power Features
    • LED Status
    • Software configuration
• 855GME SVGA controller for CRT and LVDS Flat Panel
  • Analog SVGA Output
  • LVDS Flat Panel output
  • Resolution up to 2048 x 1536 pixels with 32K colors
  • VGA, SVGA, XGA, SXGA, UXGA
  • Up to 16 million colors
  • 64-bit AGP Hardware graphics-accelerator
    • 2MB to 64MB of shared SDRAM high-performance memory
• Four BIOS configurable RS-232/422/485 serial ports on two connectors, each connect configurable as:
  • One full RS-232 port with TxD, RxD, CTS, RTS, DSR, DTR, RI, and CD
  • One RS-422/485 port with TxD+, TxD-, RxD+, RxD-, with 120 ohm termination jumper
  • Two RS-232 ports:
    • One with TxD, RxD, CTS, and RTS
    • One with TxD and RxD
  • One RS-232 port with TxD and RxD, and one RS-422/485 port with TxD+, TxD-, RxD+, RxD-, with 120 ohm termination jumper
  • Jumper enabled two RS-422/485 ports each with TxD+, TxD-, RxD+, RxD-, with 120 ohm termination jumper
  • 16550 compatible UARTs for high-speed
• 14 Advanced Digital I/O (aDIO)
  • One 8-bit-programmable I/O with Advanced Digital Interrupt Modes
    • Event Mode Interrupt generates an interrupt when any input bit changes
    • Match Mode Interrupt generates an interrupt when input bits match a preset value
    • External Strobe Mode latches 8 data inputs and generates and interrupt
  • One 4-bit port programmable as input or output
  • Two Strobes can be configured as readable inputs.
• Four USB 2.0 (Universal Serial Bus) Ports
  • High-speed, full-speed, or low-speed
  • 500 mA @ 5 Vdc provided per port
  • USB Boot capability
• UltraDMA-100 / 66 / 33 Master Mode PCI EIDE Controller
  • Transfer rate up to 100MB/sec using UltraDMA
  • Increased reliability using UltraDMA-33 transfer protocols
  • Support ATAPI compliant devices including DVD drives
  • 48-bit LBA support for hard drives larger than 137GB
• Utility port
  • XK-CM77 Cable Kit Included
  • PC-AT compatible keyboard port
  • PS/2 Mouse Port
  • Speaker (0.1W output) port
  • Hardware Reset input
  • Battery input for Real Time Clock
• Power I/O
  • Access to PC/104 Bus power pins
    • Gnd, ±12 & 5 VDC
  • Access to PC/104-Plus Bus pins
    • Gnd, ±12, 5 & 3.3 VDC
• ISA Expansion Bus
  • Full ISA bus operation.
  • Supports 8-bit (XT) and 16-bit (AT) peripherals.
  • All ISA IRQ lines and DMA channels supported.
  • Supports both I/O-mapped and Memory-mapped expansion cards.
  • Subtractive Decode of PCI cycles
    • Existing software can be used without modification.
    • No special setup required.

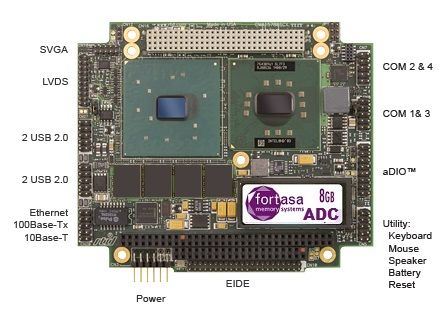

• Mating Connectors
  • Standard 12-pin 0.1" DIL header (Power)
  • Standard 10-pin 0.1" DIL header (Utility, COM1, COM2, USBs, Ethernet)
  • Standard 10-pin 2mm DIL header (SVGA)
  • Standard 20-pin 2mm DIL header (Panel)
  • Standard 16-pin 0.1" DIL header (aDIO)
  • Standard 44-pin 2mm DIL header (EIDE)


Software

• RTD Enhanced BIOS
  • Supports boot from IDE, USB, or Ethernet (PXE)
  • Serial Console Redirection
  • Flash-based CMOS Setup – No battery required to store settings
  • Fail Safe Boot – Load DOS even if no boot device is present
  • Special RTD Reliability Enhancements
• Compatible with all x86 PC operating systems:
  • DOS (MS-DOS, ROM-DOS, PC-DOS)
  • Windows (XP, XP Embedded)
  • Linux (desktop and real-time versions)
  • RTOSes such as QNX, VxWorks, Windows CE, and xPC Target
  • Note: Some hardware interfaces may require special drivers
• Includes pre-installed Datalight ROM-DOS
• Drivers and support provided for DOS, Windows, and Linux


Physical Attributes

• Dimensions
  • Board Size
    • Length (L): 3.775 inches (95.89 mm)
    • Width (W): 3.550 inches (90.17 mm)
    • Stand-off Height: 0.600 inches (15.24 mm)
  • I/O Extension
    • Length (EL): 3.125 inches (79.375 mm)
    • Width (EW): 0.500 inches (12.700 mm)
• Weight: Approximately 0.40 lbs. (0.19 Kg) with heat sink
• Standard Operating Temperature: -40 to +85°C, 90% humidity non-condensing
• Storage Temperature: -40 to +85°C
• MTBF: 244,061 hours
• Power Consumption: 13.7 W @ 5 V Typical


Recommended Accessories

• Cable Kit XK-CM90
• BRG1825: PCI to PCI Express Bridge



Ordering Information

—  Sequentially laminated PCB fabricated in accordance with IPC-6012 Class 3 Standards  —
*OEM price includes soldered 256MB SDRAM and 4GB Removable Flash Disk (8GB Flash Disk option available)
