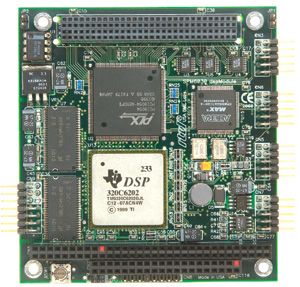

233 MHz PC/104-Plus DSP Module with 16MB SDRAM

SPM6030HR-233 Coprocessor
Industrial DSP Modules with Bus Master or Target Only PCI Interface

Operating Temperature -40° to +85°C

Key Features

• PC/104-Plus Form Factor
• Stackable 120-pin PCI expansion bus
• Stackable 104-pin AT expansion bus
• 3.3V & 5V PCI signaling compatible
• 233 MHz TMS320C6202 DSP
• 1864 MIPS operation
• PCI Controller - PLX PCI9054
• Eight 32-Bit Instructions/Cycle
• 4.3ns cycle time
• 16 Mbytes SDRAM (larger sizes available)
• 466 MB/s transfer rate
• 2 Mbytes FLASH
• All DSP resources accessible from the PCI bus
• VLIW instruction device
• Watch-Dog Timer
• Bus master or target only (Jumper Enabled)
• Complete High performance DSP accelerator module
• 3 Multi channel Buffered Serial Port (McBSP) (max. 100Mbit/s )
• Boot Mode: Map1, Internal, HPI, or Map1, Internal, 16 Bit ROM Boot Mode (Jumper Enable)
• TMS320™ DSP ALGORITHM STANDARD
• Mating Connectors
  • Standard 14-pin 0.1" DIL header (JTAG)
  • Standard 10-pin 0.1" DIL header (SyncBus)
  • 3 Standard 10-pin 0.1" DIL headers (McBSP)

I/O

• TI Processor

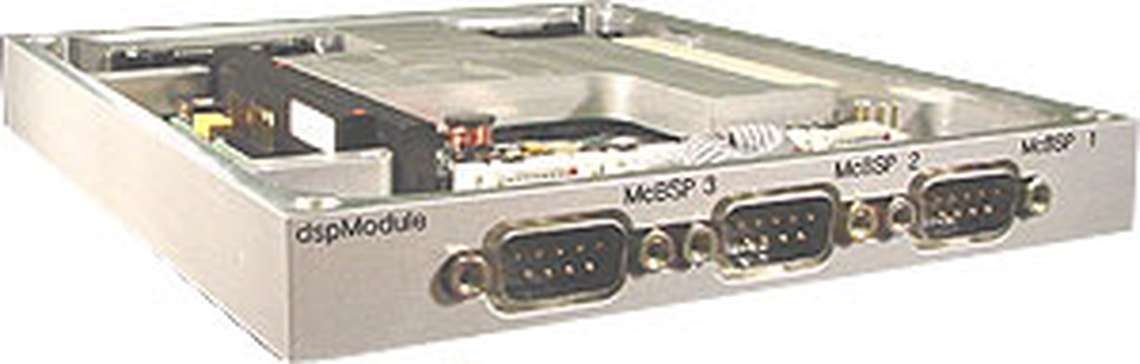

• Three Multi channel Buffered Serial Ports (McBSP):
  • Buffered Asynchronous Memory Interface of the DSP
  • High speed data transfer device between the DSP and the analog interface
  • TI/EI, MVIP, SCSA, ST bus, AC97 SPI Compatible
• JTAG emulator connector
  • Boundary-Scan-Compatible
• SyncBus for Synchronous operation with RTD's Data Acquisition boards

Software

• Supported under the following operating systems:
  • DOS (DPMI32)
  • Windows 98/NT4/2000/XP
  • Linux (2.4 and 2.6 kernels)
• Includes the RTD dspFramework, a suite of libraries and example programs to simplify application development.  Key features of the RTD dspFramework include:
  • Matching host-side and DSP-side libraries
  • Standard interfaces for passing messages between the DSP and the host system
  • Ability for the host to call DSP functions
  • Support for single and multi-threaded applications (DSP/BIOS)
  • Support for on-board hardware (McBSP, SyncBus, Flash, etc)
  • DSP applications can be downloaded through the PCI bus, or programmed into the on-board flash
  • Modular design and full source code makes it possible to modify and extend the framework
• Source code, example programs, and API documentation are included for all supported platforms
• TI Code Composer Studio required to develop and compile DSP applications

Physical Attributes

• Dimensions
  • Length (L): 3.775 inches (95.89 mm)
  • Width (W): 3.550 inches (90.17 mm)
  • Stand-off Height: 0.600 inches (15.24 mm)
• Weight: Approximately 0.22 lbs. (0.10 Kg)
• Standard Operating Temperature, 90% humidity non-condensing: -40 to +85°C
• Storage Temperature: -55 to +125°C
• MTBF: 2,512,702 hours
• Power Consumption 3.0 W @ 5 VDC typical
